Contra Angle Dental Handpiece Unit Multipurpose Dental Student Academic Handpiece Kit
LED High speed handpiece * 1
Name: Dental high speed hanpiece
Power source: Turbine
Chuck type: Push button
Speed range: Max.400000 RMP
Spray: Triple water spray
Air Pressure: 0.22-0.25 Mpa
Bearing: Japanese bearing
Noise: less than 65db
Light source: built-in generator

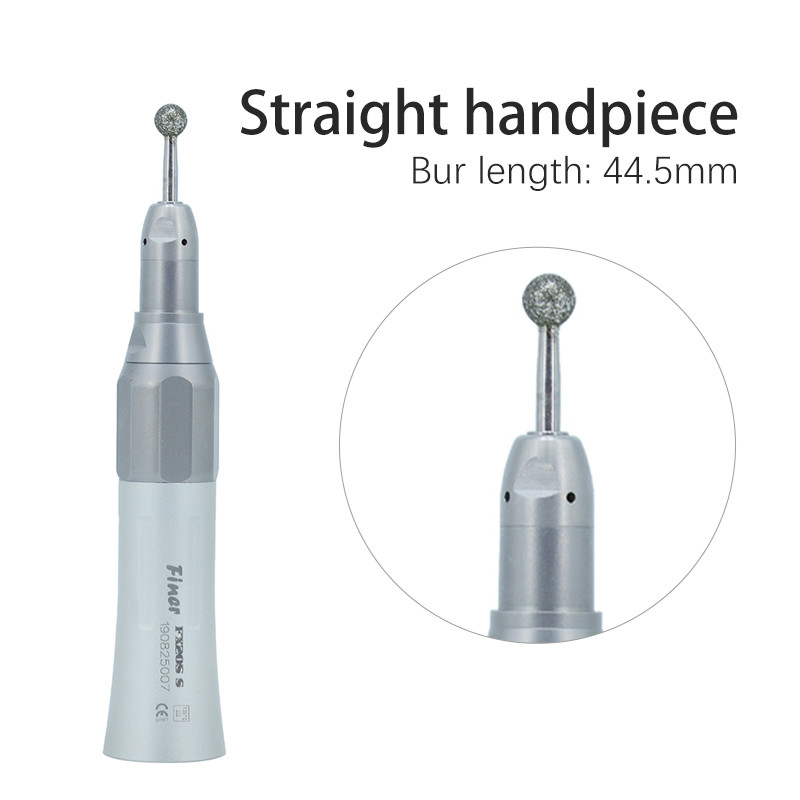

Straight Handpiece *1
1. Gear ratio: 1:1 direct drive
2. Rotation speed: Max. 30,000rpm
3. Bur diameter: HP ø2.35mm
4. Bur length: 44.5mm
5. Noise: ≤65dB
6. Connection: E-type
7. Chuck: Ring lock
8. Irrigation: External (water spray)

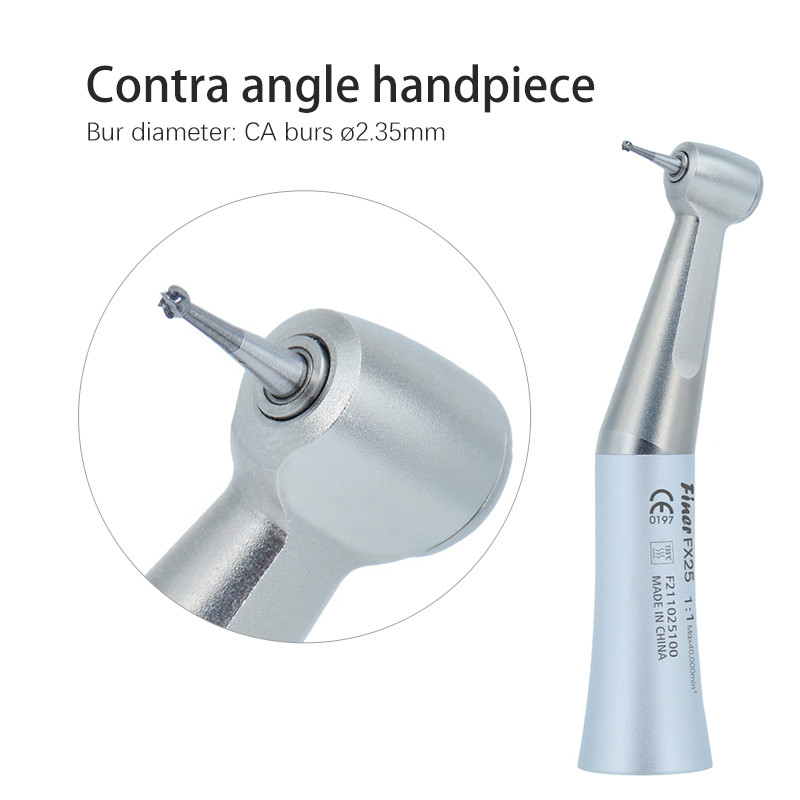

Contra Angle *1
Gear ratio:1:1
Chuck Type:Push button
Irrigation: External (water spray)
Noise:≤65dB
Bearing: Ball bearing
Bur diameter: CA burs ø2.35mm
Rotation speed:Max. 40,000 rpm
Air Motor *1
1. Ratio: 1:1 direct drive
2. Air Pressure: 0.3-0.35Mpa
3. Water Pressure: 0.2 MPa
4. Rotation Speed: Max. 25,000 rpm
5. Chuck Type: Push button
6. Noise: ≤65dB
7. Irrigation: External water spray
8. Connection: 2 hole/4 hole
Features:
b. Low-Speed Handpieces: These handpieces operate at lower speeds, typically ranging from 5,000 to 40,000 RPM. They are used for tasks that require more control and torque, such as polishing, finishing, and adjusting dental restorations.
c.The motor generates the rotational power required for the handpiece to operate. It can be powered by either compressed air (air-driven handpieces) or electricity (electric handpieces).
d.Turbine: The turbine is the part of the handpiece that converts the power from the motor into rotational motion. It consists of blades or vanes that rotate at high speeds.
-
Types of Dental Handpieces:
a. High-Speed Handpieces: These handpieces operate at higher speeds, typically ranging from 200,000 to 400,000 RPM. They are used for procedures requiring precision and efficiency, such as tooth preparation for fillings, crown placement, and removal of decayed tooth structure.
Technical Parameters:
| Name | Dental High & Low Speed Handpiece Student Kit |
| Type | Dental high speed handpiece and low speed handpiece set |
| Power source | Turbine |
| Body | Titanium coating |
| Material | Alluminum Alloy |
| Ratio | 1:1 |
| Rotating speed | Max. 400,000 rpm (high speed) / 25,000rpm (low speed) |
| Bur applicable | FG burs (1.6mm) & CA burs (2.35mm) |
| Noise | ≤65dB |
| Connection | E-type |
| Spray | Quadruple water Spray (Water Jet / Mist) |
| Wrench type | Push button |
| Autoclavable | Up to 135℃ |
